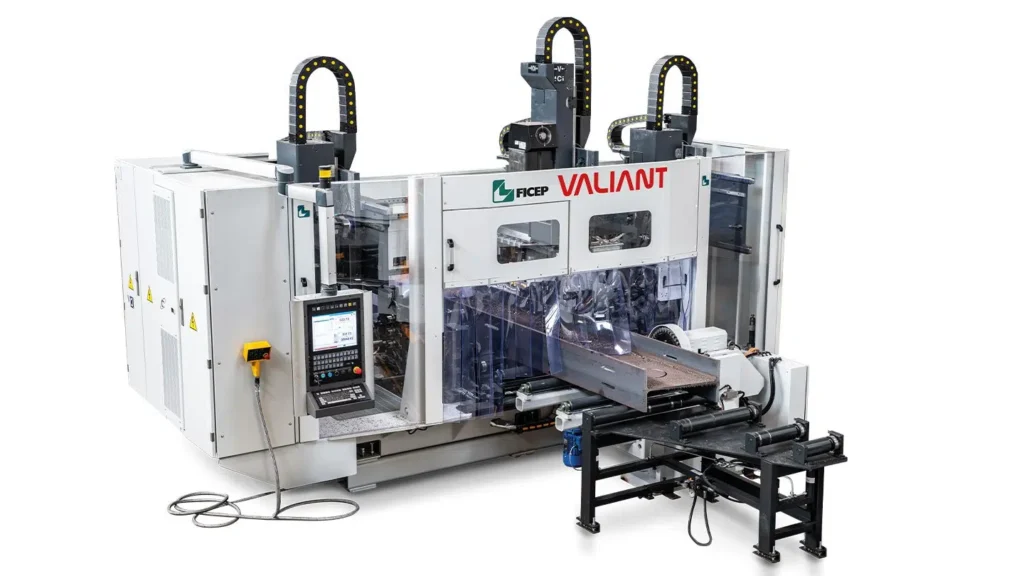

FICEP VALIANT – High-Performance CNC Structural Steel Processing
Advanced Multi-Spindle Drilling, Sawing, and Thermal Cutting for Maximum Productivity
Manufacturing efficiency begins with equipment designed to do more in less time. The FICEP VALIANT is the latest evolution in structural steel processing, combining advanced CNC drilling, sawing and thermal cutting technologies into one highly productive solution.
Developed to meet the growing demands of structural steel fabricators, the three-spindle VALIANT delivers exceptional flexibility, precision and throughput across a wide range of structural steel profiles.
Complete Processing in One System
The FICEP VALIANT performs multiple operations within a single production line, helping manufacturers reduce handling, improve workflow, and increase productivity.
Available Processes
- Drilling
- Scribing
- Milling
- Countersinking
- Tapping
- Marking
- Band Sawing
- Oxy-Fuel Cutting
- Plasma Cutting

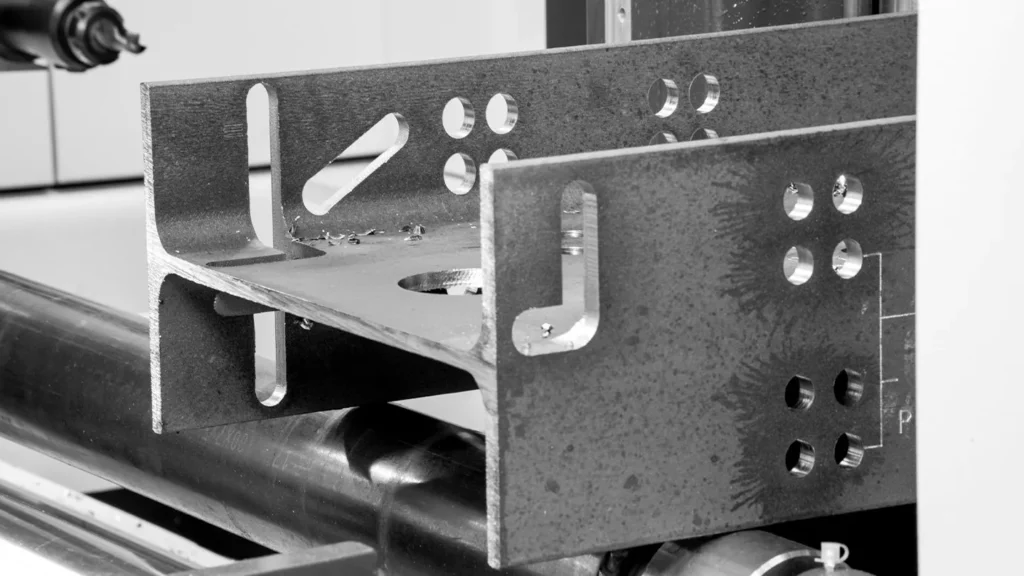

Process a Wide Variety of Steel Sections
The VALIANT is designed to process:
- Beams
- Angles
- Flats
- Channels
- Square Tubes
- Rectangular Tubes
Innovative Technology for Greater Productivity
The FICEP VALIANT introduces several significant engineering advancements.
Simultaneous Three-Surface Drilling
Its innovative sub-axis spindle positioning enables all three drilling spindles to work simultaneously on different surfaces—even when hole positions are not aligned. This significantly reduces machining time while improving production efficiency.
Simultaneous Four-Side Scribing
The independently controlled underside scribing device also features sub-axis positioning, enabling simultaneous scribing on up to four sides for greater accuracy and improved workflow.
Extended Auxiliary Axis
Each spindle incorporates an extended 300 mm auxiliary axis, providing increased positioning flexibility and allowing the machine to accommodate a broader range of applications and complex machining requirements.
Built for Today’s Structural Steel Industry
The FICEP VALIANT is engineered for fabricators looking to increase productivity without compromising quality. By combining multiple machining operations into one advanced CNC solution, manufacturers can streamline production while maintaining the precision required for today’s demanding structural steel projects.
Whether producing heavy beams, channels, tubular sections or complex fabricated components, the FICEP VALIANT provides the speed, reliability and flexibility modern fabrication facilities require.
